Artikelnummer:
EAN-code:

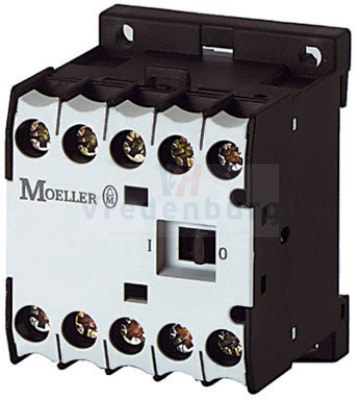

Eaton DIL EM10 24V magneetschakelaar 4KW
| Verpakt per | 1 st. |
|---|
Niet ingelogd
Log in om de voorraad te zien
- Neem contact op voor de levertijden
- Franco geleverd
- Wordt verzonden met eigen transportdienst
- Iedere bestelling wordt handmatig gecontroleerd
Specificaties

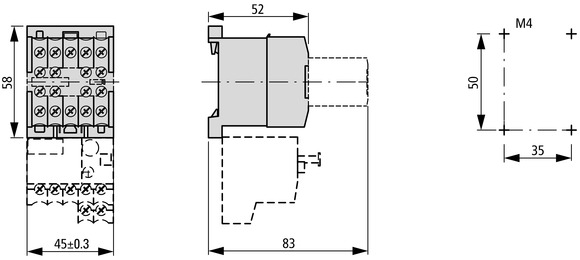

| Breedte | 45 |
| Hoogte | 58 |
| Diepte | 52 |
| Modulaire uitvoering (voor railmontage) | Nee |
| Bedrijfsspanning bij AC 50 Hz | 24.000 |
| Bedrijfsspanning bij AC 50 Hz | 690.000 |
| Nom. stuurspanning Us bij DC | 0.000 |
| Nom. stuurspanning Us bij AC 50HZ | 24.000 |
| Nom. stuurspanning Us bij AC 60HZ | 0.000 |
| Nom. vermogen bij AC-3, 400 V | 4 |
| Nom. bedrijfsstroom Ie bij AC-3, 400 V | 9 |
| Aantal hulpcontacten als maakcontact | 1 |
| Aantal hoofdcontacten als maakcontact | 3 |
| Nom. bedrijfsstroom Ie bij AC-1, 400 V | 22 |
| Bedrijfsspanning bij AC 60 Hz | 24.000 |
| Bedrijfsspanning bij AC 60 Hz | 690.000 |
| Nom. bedrijfsstroom Ie bij AC-4, 400 V | 6 |
| Nom. vermogen Ie bij AC-4, 400 V | 3 |
| Netto gewicht | 0.170 Kilogram |
Technische documentatie
Eaton
- Productserie:DILEM
- Producttype:DILEM-10(24V50HZ)
- Product code Eaton:010005
- Artikelnummer Vredenburg:553001
- EAN-code:4015080100058
- Imagro nummer:223410021
